Features and benefits

دستگاه الایمنت لیزری Shaft alignment tool TKSA 80

Seven inch coloured screen with touch screen and keypad
Rugged design for use in harsh environments-1.2 meter drop test to Military standard
Built-in wireless technology
“Swap view”- enables graphics to be swapped from one side of machine to the other to accommodate the user’s position
Full template database- an extensive database where wide range of alignment relevant information of machine can be stored. Users can pick and chose components from the database to create machine trains with preferred colour.
Energy efficiency indicator- indicates the estimated extra energy consumption due to misalignment
Horizontal and vertical alignment
Visual inspections on oil leakage, oil level, foundation bolt status and wear indications.
Large machine train alignment-align up to 5 machines in a line
Run-out check- the system reminds users to perform a simple measurement to look for bend shafts.
Alignment target

شرکت پترو پژوهش خاورمیانه(سهامی خاص)

021-77130687-8

021-77228679

09122710269

www.ppkgroup.ir

Technical data
Designation	TKSA 80
Applications	Horizontal and vertical alignment, Machine train alignment, Alignment tolerance, Alignment target, Soft foot check, Visual inspection, Chocking arrangement, Full template, Data base
Measuring units:
Housing material	Chassis: aluminium Sides: glass filled PBT
Laser class	2
Maximum laser power	1 mW
Distance between measuring units	Maximum: 10 m (33 ft)
Type of detectors	Linear CCD with length 36 mm (1.4 in.)
Connectivity	Low-power, industrial wireless network, 802.15.4 compliant
Rod/fixing bar	4 off 90 mm (3.5 in.), 4 off 150 mm (5.9 in.) Can be screw together to increase length
Environment protection	IP 65
Battery type	2 x AA Alkaline or rechargeable battery
Dimensions	96 x 83 x 36 mm (3.8 x 3.3 x 1.4 in.)
Weight	326 g (11.5 oz)
Display unit
Housing material	PC/ABS plastic
Display type	7 inch diagonal colour LCD. Day light viewable with touch screen
Environment protection	IP 65
Drop test	1,2 m (3.9 ft) drop test to military standard
Battery type	Rechargeable Li-ion battery and external power supply
Operating time	10 hours continuous
PC connection	USB
Displayed resolution	0,01 mm
Dimensions	276 x 160 x 53 mm (9.2 x 5.2 x 1.9 in.)
Weight	1 060 g (37.3 oz)
Complete system
Contents	Display unit (battery included) 2 measuring units, 2 mechanical shaft fixtures 2 adjustable chains with tightening pin 2 extension chains Rods: 4 x 90 mm (3.54 in.), 4 x 150 mm (5.9 in.) USB cable Charger for display unit Measuring tape Screw driver Tommy bar Quick start guide CD with instruction for use Carrying case
PC download	USB
Storage memory	1 000 alignments
Soft foot check	By laser or manually
Alignment tolerance check	Yes
User editable tolerances	Yes
Shaft diameter range	up to 300 mm (11.8 in.)
Chain included for shaft diameters	30 –300 mm (1.2–11.8 in.)
Displacement measurement accuracy	± 5 um ± 0.5%
Temperature range	-10–50 °C (14–122 °F)
Operating humidity	<90%
Carrying case dimensions	534 x 427 x 207 mm (21 x 16.8 x 8.2 in.)
Total weight (incl. case)	7,6 kg (16.8 lb)
Warranty	1 year

Accessories and spare parts
Designation	Description
TKSA 60/80-EXTCHAIN	2 × Extension chains of 500 mm (19.7 in.) for shaft diameters up to 300 mm (11.8 in.)
TKSA ROD90	4 × threaded rods of 90 mm (3.5 in.)
TKSA ROD150	4 × threaded rods of 150 mm (5.9 in.)
TKSA MAGVBK	2 × Magnetic V-brackets, supplied without rods or chains
TKSA SLDBK	2 × Wheels to be used with standard V-bracket (TKSA VBK), supplied without V-bracket
TKSA EXT50	2 × Offset brackets of 50 mm (2 in.) compatible with standard (TKSA VBK) and magnetic V-brackets (TKSA MAGVBK) and magnetic base (TKSA MAGBASE)
TKSA EXT100	2 × Offset brackets of 100 mm (3.9 in.) compatible with standard (TKSA VBK) and magnetic V-brackets (TKSA MAGVBK) and magnetic base (TKSA MAGBASE)
TKSA MAGBASE	2 × Magnetic bases IMPORTANT: Offset bracket (TKSA EXT50 or TKSA EXT100) is required for usage and needs to be ordered separately.
TKSA VBK	2 ×Standard V-brackets, supplied without rods or chains

Technical data
Designation	TKSA 31
Sensors and communication	29 mm (1.1 in.) CCD with line laser; electronic inclinometer ±0,5°;
	Wired communication with USB cables (included)
System measuring distance *	0,07 to 2 m (0.23 to 6.6 ft.)
Measuring errors / displayed resolution	<0,5% ±5 µm / 10 µm (0.4 mils)
Display type	5.6" colour resistive touchscreen LCD
Software update	via USB stick
Shaft diameters	20 to 150 mm (0.8 to 5.9 in.) diameter
	Up to 300 mm (11.8 in.) with optional extension chains
Max. recommended coupling height **	105 mm (4.2 in.)
Mounting system	2 × V-brackets; 2 × chains 400 mm (15.8 in.); 2 × threaded rods 150 mm (5.9 in.) per V-bracket
Alignment measurement	3 position measurement 9–12–3
	3 position automatic measurement 9–12–3
Alignment correction	Live values for vertical and horizontal machine position correction; Laser soft foot tool
Alignment report	Automatic pdf report exportable via USB stick
System battery	Up to 7 hours continuous use at 100% backlight (5 000 mAh rechargeable LiPo battery)
Carrying case dimensions	530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Total weight (incl. case)	4,75 kg (10.5 lb)
Operating temperature	0 to 45 °C (32 to 113 °F)
IP rating	IP54
Calibration certificate	Supplied with 2 years validity
* With standard USB cables supplied, up to 4 m (13.1 ft.) possible
** Up to 195 mm (7.7 in.) with extension rods (optional)

وزن نمایشگر	0.62 کیلوگرم
سایز نمایشگر	205mm x 116 mm x 56 mm
درجه حفاظت	IP 54

مشخصات فنی
فاصله اندازه گیری	Up to 5m
نوع دتکتور	CCD
طول دتکتور	30mm
رزولوشن دتکتور	1µm
دقت اندازه گیری	0,3%±7μm

مشخصات شفت
قطر شفت	Ø25 – 175 mm (1in – 6.9in)With extension chain Ø25 – 450 mm (1in – 18in)
میله ها	4pcs 150 mm (5,9 in)

تجهیزات جانبی
حافظه	500MB
تغذیه	باتری شارژی

دستگاه الایمنت لیزری Shaft alignment tool TKSA 80

Shaft alignment tool TKSA 80

The advanced tool to increase your alignment knowledge

Demonstration video TKSA 80

Features and benefits

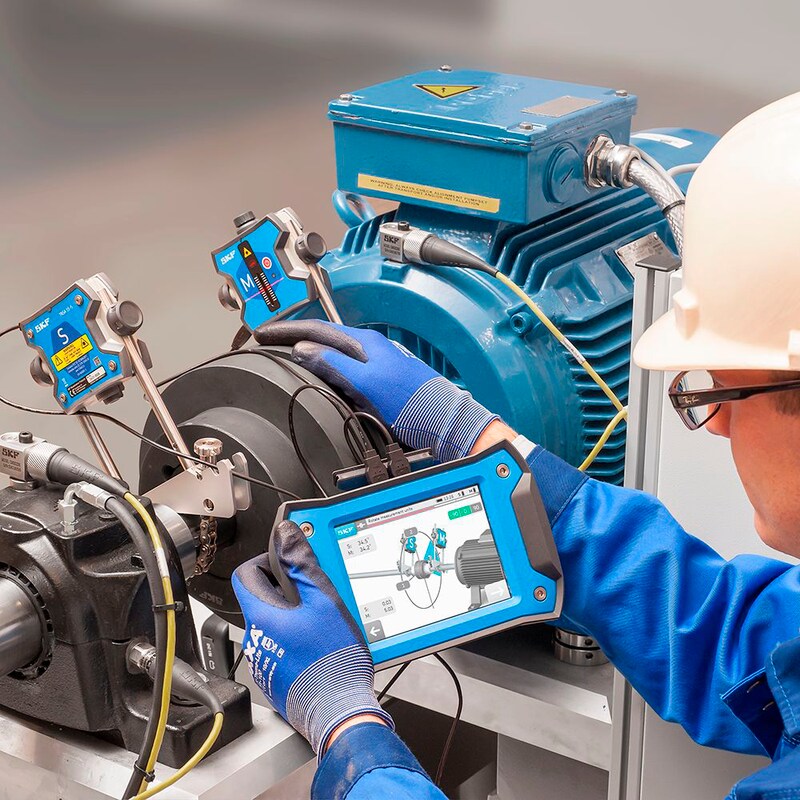

Shaft alignment tool TKSA 31
